FOUR-WAY VALVE

Four-way ball valve, also known as four-way circulating valve, is mostly used in the forward and backward circulating water supply system of power plant unit cooler.The traditional process pipe distribution method can realize cooling and reverse circulation water supply, which occupies large space, high cost and frequent operation.The four-way circulating valve is adopted to replace the working principle of manifold and valve set, which simplifies the procedure, facilitates the operation, reduces the cost, facilitates the control, and has good synchronicity.It has been successfully applied to the national "west-to-east power transmission" backbone projects: xiluodu of the three gorges group, xiangjiaba hydropower station, etc.

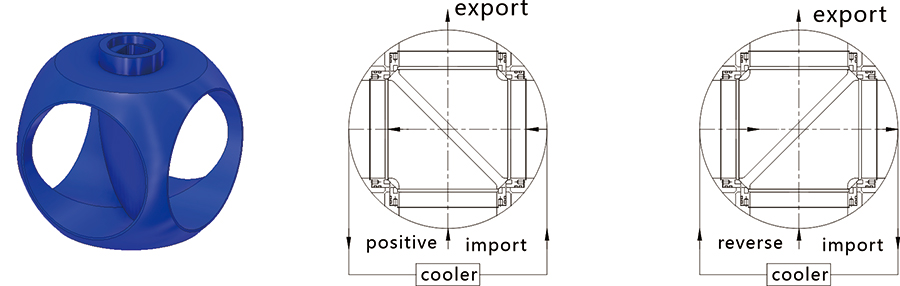

Structural characteristics of

Four-way ball valve adopts four-side seat fixed ball structure, one valve replaces four valves, compact structure, small installation space, convenient operation, convenient remote control.

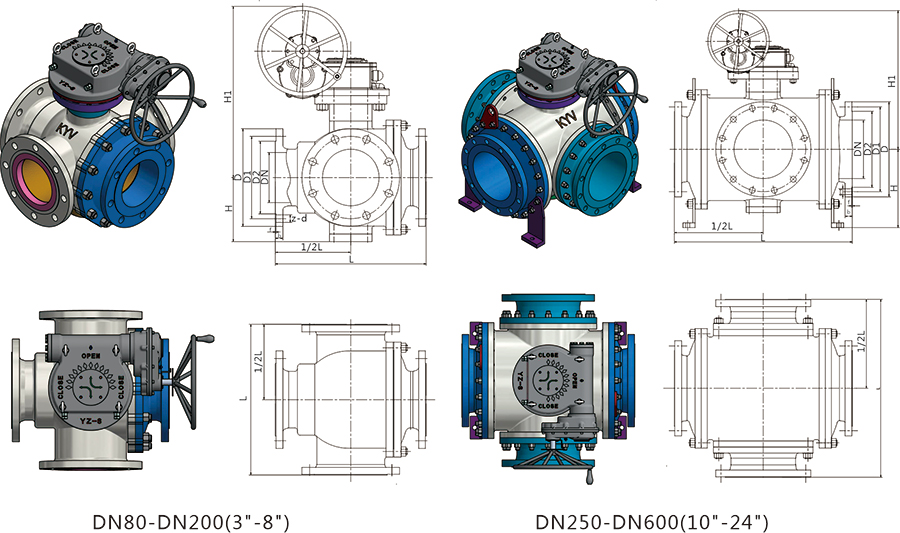

Shape and connection dimensions

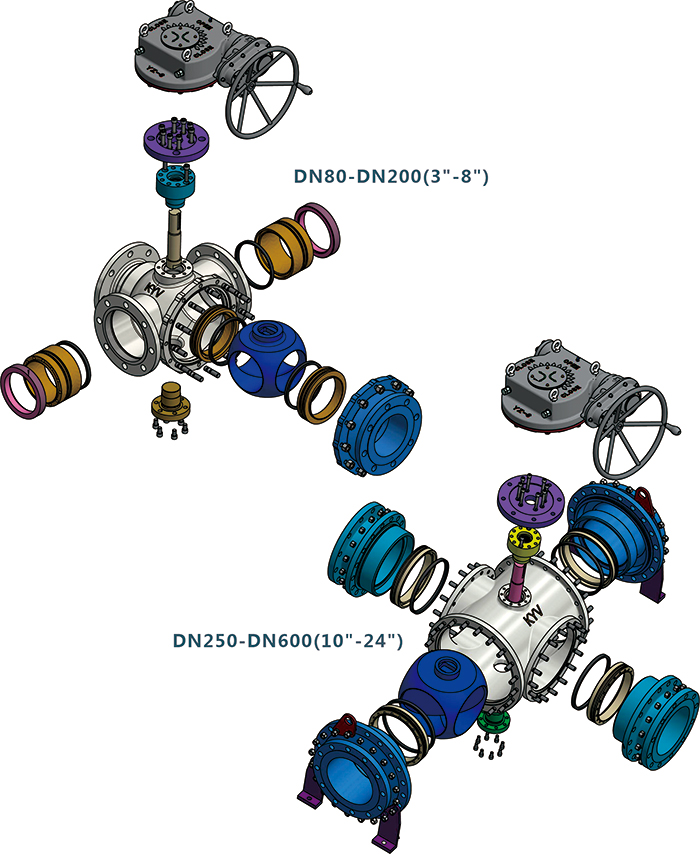

Four - way ball valve structure decomposition

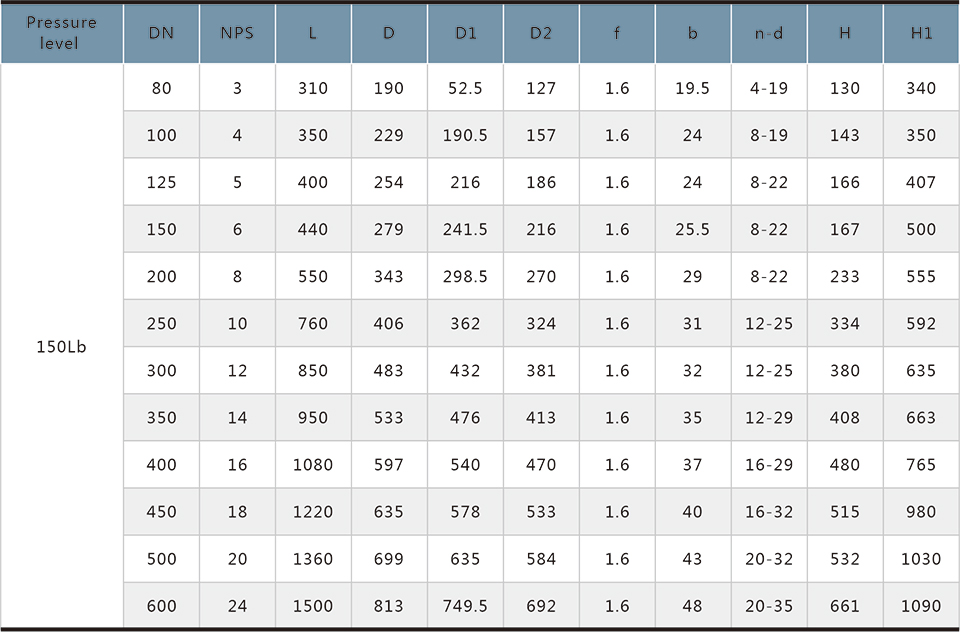

API ANSI B16.5-RF
